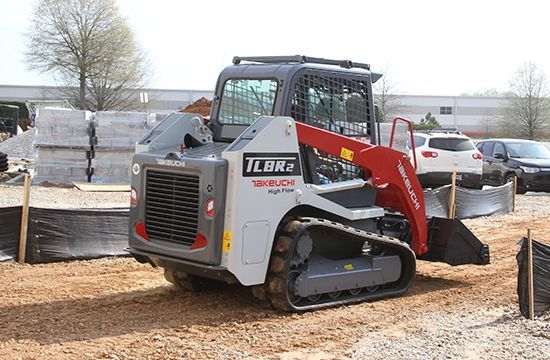

Takeuchi TL8R2 Compact Track Loader

The Takeuchi TL8R2 is a highly efficient, compact track loader that blends power, durability, and versatility, designed to meet the toughest jobsite demands. With a redesigned engine and enhanced operator experience, it offers exceptional performance in a variety of environments, from construction sites to landscaping projects. Standard features like two-speed travel, a spacious operator's station, and a quiet ride track system make it a reliable and comfortable choice for operators. Whether you're tackling heavy lifting or precision tasks, the TL8R2 provides unmatched productivity and ease of use.

Weight: 9182 lbs

Width: 66 in

SIZE

Height: 86in

Length:126 in

AVAILABILITY

Available in all areas.
Available weekly, monthly, or quarterly.

Size & Availablility



TL8R2 Compact Track Loader



Key Features

ENGINE FUEL

Diesel

ENGINE

Kubota V3307-CR-TE5B

HORSEPOWER

74hp

ATTACHMENTS

Toothed digging bucket

Enhanced Operator Comfort and  Control

The TL8R2 offers an operator's station with an automotive-style interior, featuring a deluxe high-back suspension seat, electronic throttle control, and a multi-informational color display. These features ensure comfort and ease of control, whether you're on long shifts or operating in demanding conditions.


Equipped with an EPA Final Tier 4 compliant turbocharged engine, the TL8R2 combines high pressure common rail fuel injection with active power control for optimal fuel efficiency and performance. Its dual element air cleaner and high-capacity cooling system ensure durability, even in the harshest working environments.


Powerful & Efficient Engine

Superior Hydraulic & Performance Features

With radial lift design, hydraulic pilot controls, and proportional auxiliary hydraulic controls, the TL8R2 delivers superior lifting capacity and working force. Optional high-flow hydraulics, a hydraulic quick coupler, and a mechanical quick hitch enhance its versatility for a range of attachments and tasks.

Rent This Track Loader Today!

OPERATING PERFORMANCE
Operating Weight - Canopy 8,807 lb (3,995 kg)
Operating Weight - Cab 9,182 lb (4,165 kg)
Tipping Load 6,041 lb (2,740 kg)
Rated Operating Capacity, SAE J818* 2,116 lb (960 kg)
Operating Load at 50% of Tipping Load 3,020 lb (1,370 kg)
Bucket Breakout Force 6,204 lb (2,814 kg)
Lift Arm Breakout Force 5,957 lb (2,702 kg)
Traction Force 9,733 lb (4,415 kg)
Ground Pressure - Canopy 4.5 psi (31.0 kPa)
Ground Pressure - Cab 4.6 psi (32.0 kPa)
Travel speed - Low Range 4.7 mph (7.5 km/hr)
Travel speed - High Range 7.0 mph (11.2 km/hr)
Creep Mode Speed - (High Flow Only) Low Range .09 mph (0.15 km/hr)
Creep Mode Speed - (High Flow Only) High Range 3.1 mph (5.0 km/hr)
* Operating capacity of compact track loaders is rated according to SAE J818 at no more than 35% of the tipping load
FLUID CAPACITIES
Engine Lubrication 11.8 qt (11.2 L)
Cooling System 15.9 qt (15.0 L)
Fuel Tank Capacity 28.3 gal (107.0 L)
Fuel Consumption (65% of Full Load) 2.8 gal/hr (10.6 L/hr)
Hydraulic Reservoir Capacity 9.6 gal (36.5 L)
Hydraulic System Capacity 16.9 gal (64.0 L)
ENGINE
Make / Model Kubota V3307-CR-TE5B
Engine Displacement 203.2 cu in (3331 cc)
Horsepower @ 2,600 rpm 74.3 hp (54.6 kW)
Maximum Torque @ 1,500 rpm 192.6 ft-lb (261.1 Nm)

Track Loader Specifications

Before diving into the specifications, it's important to highlight the key performance features of the Takeuchi TL8R2. Built for efficiency and strength, the TL8R2 delivers superior operational capabilities that help maximize productivity in a variety of demanding tasks. Whether you're handling heavy loads or navigating through challenging terrain, this machine excels with impressive breakout forces, high traction, and stable ground pressure. Its user-friendly controls and versatile hydraulic system make it easy to adapt to different attachments and job requirements. Now, let's take a closer look at the detailed specifications that demonstrate why the TL8R2 is the perfect choice for tough jobs.

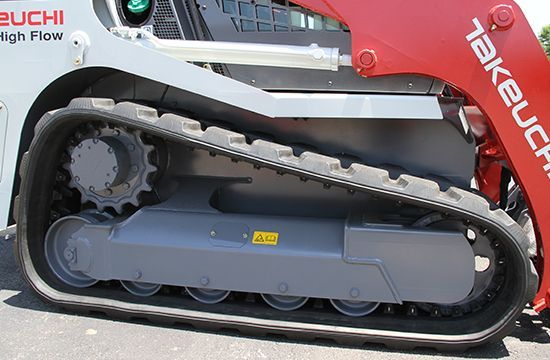

Heavy Duty Undercarriage

Features repositioned travel motors with internally routed drive lines, double and triple flange track rollers that maintain at least two points of contact at all times making the machine less susceptible of detracking and the quiet ride track design greatly reduces noise and vibration improving ride quality.

All Steel Construction

Increases strength and rigidity while protecting vital engine and hydraulic components.  Model specific undercarriage components with larger bearings results in slower shaft speed extending the life of the components.

Creep Mode

This feature will enable operators to precisely match the travel speed of the track loader to a particular attachment without having to constantly meter the travel lever.

Deluxe Operator Station

The 5.7" multifunction color display provides machine health and vitals while also allowing the operator to control a multitude of machine features and functions. Rear view camera adds peace of mind with real time view of the rear of the machine.  Deluxe high back adjustable suspension reduces operator fatigue while providing greater visibility to the working equipment. A pressurized cab helps cut down on debris inside cabin and improves air quality.

Radial Lift Loader Design

Radial design excels in grading and dirt work and provides greater bucket breakout and lift arm forces, resulting in greater mid-height reach for backfilling.

Why Rent or Lease the TL8R2 Compact Loader?

With its impressive operating capabilities, advanced hydraulic system, and durable construction, the Takeuchi TL8R2 is built to handle even the toughest jobs with ease. Whether you're tackling heavy lifting, digging, or material handling, this compact track loader offers unmatched power and efficiency. Its operator-friendly design, including a spacious, comfortable cabin and intuitive controls, ensures maximum productivity and ease of use. Equipped with high-flow hydraulics and an array of useful attachments, the TL8R2 is the perfect solution for demanding projects. Don’t miss out on the opportunity to enhance your worksite—contact us today to learn more about the TL8R2 and how it can help you get the job done.


Reach out to us today to check availability, request a quote, or schedule delivery. Our team is here to assist you in choosing the perfect rental to match your project's timeline and budget.

Rent the TL8R2 Compact Track Loader Today!
